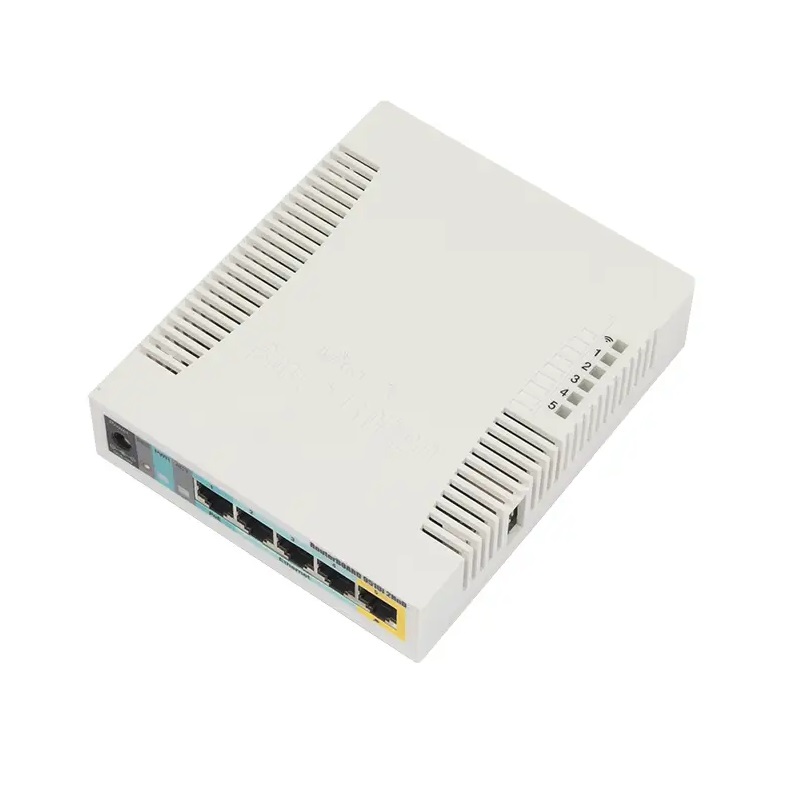

MikroTik RB951Ui-2HnD Wireless AP Router

MikroTik RB951Ui-2HnD Wireless AP Router – A Compact Powerhouse for Modern Connectivity

MikroTik RB951Ui-2HnD Wireless AP Router stands as one of those rare networking devices that carry a surprising amount of capability inside a small, unassuming chassis. It blends power, simplicity, and long term dependability, making it a popular choice for homes, small offices, and even specialized industrial setups. With its vast configuration options, strong wireless output, and legendary RouterOS flexibility, it is built to serve users who need more than a basic access point but prefer a device that remains quiet, cool, and energy efficient.

This router is equipped with a 600 MHz Atheros AR9344 CPU, 128MB of RAM, and a rugged 128MB NAND storage system, enabling it to handle tasks beyond simple routing—such as firewalling, bandwidth control, VPN management, and hotspot features. Despite its small footprint, the RB951Ui2HnD offers surprising wireless strength thanks to its 30 dBm output power, providing coverage that easily penetrates walls and spreads across expansive indoor areas.

Compact, resourceful, and built with forward thinking technology, this model has earned its place as a trusted networking tool. Whether used as a primary router, a backup device, or a dedicated wireless access point, MikroTik RB951Ui-2HnD Wireless AP Router continues to stand out.

Key Features of MikroTik RB951Ui-2HnD Wireless AP Router

High Performance Processing Core

Powered by the Atheros AR9344 CPU running at 600 MHz, the router handles simultaneous tasks—routing, NAT, firewall, and wireless management—efficiently.

Strong Wireless Output

The builtin 2.4GHz 802.11b/g/n radio delivers 30 dBm (1000 mW) output power, offering robust indoor coverage even in challenging environments.

Flexible Connectivity

With 5 Ethernet ports (10/100 Mbps) and a PoEout capable port, the device makes it easy to power another MikroTik device directly without an external adapter.

RouterOS Level 4 License

The integrated RouterOS L4 allows advanced features: enterprise grade routing protocols, VPNs, QoS, hotspot, firewall rules, user management, and more.

Energy Efficient and Compact

It consumes a maximum of only 7W, making it suitable for constant 24/7 operation without generating excessive heat.

Durable NAND Storage

The 128MB NAND enhances reliability, making configuration storage and system logs more stable compared to basic flash storage.

Wide Temperature Tolerance

Engineered to function from 20°C to 50°C, it performs reliably in tough climate conditions, server rooms, or near heat generating electronics.

Advantages of MikroTik RB951Ui-2HnD Wireless AP Router

Superior Range and Stability in 2.4GHz

While many routers struggle in the crowded 2.4GHz band, the high power output of the MikroTik RB951Ui-2HnD Wireless AP Router creates stronger, more stable links. This is especially valuable in apartments, schools, and offices filled with competing signals.

Exceptional Value for Cost

Despite its advanced capabilities, the device remains highly affordable. It delivers enterpriselevel features at a smallbusiness price point.

Highly Configurable Networking

Thanks to RouterOS, users gain control over routing tables, firewall chains, user profiles, queues, bridging functions, and VLAN configurations. The router can serve as:

• a basic home router
• a wireless access point
• a managed router for small businesses
• a hotspot gateway
• a VPN termination point

Silent Operation

With no moving parts or internal fans, the router stays completely silent and is suitable for bedrooms, meeting rooms, or office environments.

PoE Convenience

Port 5 supports passive PoEout, enabling easy power delivery to cameras, wireless CPEs, or other MikroTik devices—reducing cable clutter.

Compact and Lightweight Design

Weighing only 232g, the router is easy to mount on a wall, place on a desk, or attach to tight network cabinets.

Proven Reliability

MikroTik RB951Ui-2HnD Wireless AP Router has built a reputation for stability, surviving years of operation with minimal maintenance. Businesses deploying dozens of units consider it one of the most dependable MikroTik models.

How to Set Up MikroTik RB951Ui-2HnD Wireless AP Router for Optimal Performance

1. Basic Configuration

Start by accessing the router through WinBox, WebFig, or SSH. Run the QuickSet wizard to configure:

• LAN subnet
• Wireless SSID
• Password
• WAN source

This creates a secure and functional network within minutes.

2. Fine Tune Wireless Settings

To optimize the radio:

• Select the least congested channel using the builtin scanner
• Use 20/40 MHz channel width for maximum throughput
• Adjust transmit power based on environment (high power for large homes, lower for small rooms)

3. Enhance Security

Enable strong protective measures:

• WPA2PSK/AES for wireless
• Block unnecessary services (disable unused WinBox/SSH ports)
• Create firewall filters
• Use address lists for access control

4. Leverage Bandwidth Management

Use the Queue system to prioritize:

• streaming
• VoIP
• office tasks

This prevents congestion during peak traffic loads.

5. Use PoE out Wisely

Connect a low power device (camera, AP, or CPE) to Port 5, but ensure it does not exceed the available PoE output threshold to prevent overload.

6. Backup and Export Configurations

Always maintain configuration backups:

• System → Backup
• Export scripts for external storage

This enables quick recovery in emergencies.

Comparison with Other Similar MikroTik Routers

In terms of balance—range, cost, flexibility—the MikroTik RB951Ui-2HnD Wireless AP Router holds a unique advantage in the mid tier MikroTik lineup.

Technical Specifications of MikroTik RB951Ui-2HnD Wireless AP Router

Frequently Asked Questions (FAQ)

1. Does the RB951Ui2HnD support 5GHz WiFi?

No, it only supports 2.4GHz 802.11b/g/n wireless.

2. Can it handle multiple users simultaneously?

Yes. With 128MB RAM and a solid CPU, it supports dozens of users in small to medium environments.

3. Is PoEout safe for all devices?

PoEout is passive, so ensure the device accepts passive PoE before connecting.

4. Can it work as a repeater?

Yes. RouterOS allows it to be configured as:

• Repeater
• WDS bridge
• Wireless client
• Access point

5. Is it suitable for offices?

Absolutely. Its reliability, performance, and feature set make it excellent for small and medium sized offices.
